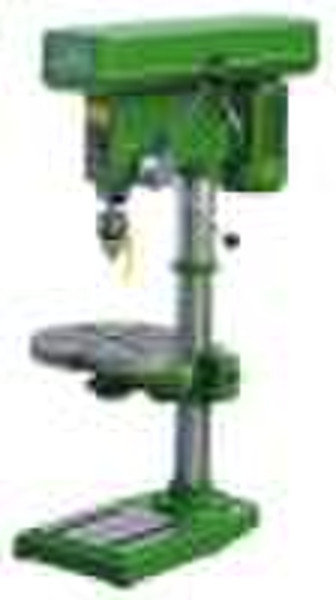

Bench Drilling Machine

1) Model: ZQ4116/ZQ4119 2) Max. drilling capacity: 16/19mm 3) Diameter of column: 70mm 4) Spindle travel: 58mm 5) Distance spindle axis to column surface: 180mm 6) Max. distance spindle nose to worktable: 410mm 7) Max. distance spindle nose to base: 590mm 8) Spindle taper: MT2 9) Spindle speeds range: 200-2,780mm 10) Spindle speeds series: 12mm 11) Dimension of worktable surface: Φ300mm 12) Dimension of base: 445 x 270mm 13) Overall height: 960mm 14) Motor: 370/550W Outer packing: Packing dimensions: 92 x 52 x 28cm N.W.: 63kg G.W.: 68kg
