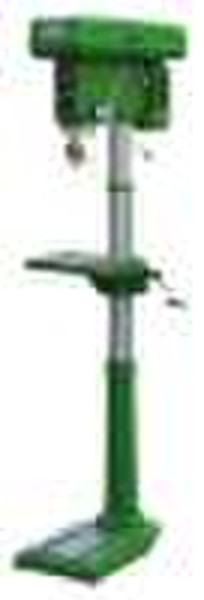

Drilling Machine

1) Model: ZQD4125/ZQD4132 2) Max. drilling capacity: 25/31.5mm 3) Diameter of column: 85mm 4) Spindle travel: 110mm 5) Distance spindle axis to column surface: 200mm 6) Max. distance spindle nose to worktable: 490mm 7) Max. distance spindle nose to base: 1,240mm 8) Spindle taper: MT3 9) Spindle speeds range: 200-2,280mm/150-2,270mm 10) Spindle speeds series: 9/12mm 11) Dimension of worktable surface: 280 x 280mm 12) Dimension of base: 566 x 356mm 13) Overall height: 1,680mm 14) Motor: 750W Outer packing: Packing dimensions: 108 x 77 x 34cm N.W.: 110kg, 108kg G.W.: 117kg, 115kg
